E 系列蓄电池12V33~200Ah 阀控式铅酸胶体蓄电池
编辑：本站原创 发布日期：2021-10-12
E系列（高性能工业型）胶体蓄电池简介
E系列12V阀控式铅酸胶体蓄电池，正负极板栅采用耐蚀铅钙锡多元合金，电解质材料采用气相二氧化硅制作的胶体电解液，其富液量设计、气体再化合设计、极板固化工艺、化成工艺保证了蓄电池具有优异的抗深放电性能、欠充电循环性能和更好的安全性与可靠性，非常适合工业现场应用的要求。
产品技术特点
长寿命
正负极板栅采用耐蚀铅钙锡多元合金，气体再化合技术； 电解质材料采用气相二氧化硅制作，胶体电解液降低了对板栅的腐蚀；极板固化工艺、化成工艺保证了电池的12年浮充设计寿命。
更宽的工作温度区间
电池内部采用过量电解质设计，可在环境温度为-20℃～ 50℃的工作场所使用；即使在高温及过充情况下仍能可靠工作，电池不会“干涸”。
优异的抗深放电性能
电池深放电后再充电的恢复能力强，100％放电后仍可继续接在负载上，放置4周时间再充电，仍可恢复原容量。
优异的欠充电循环性能
电池内部采用过量电解质设计，凝胶电解质在长期欠充电状态下，电池也不会“干涸”，不会因为欠充电而损坏， 有很好的欠充电循环能力。
更好的安全性与可靠性
凝胶电解质采用气相二氧化硅配制，电解质在成品电池中呈现凝胶状态、不流动，无漏液及分层现象；电池采用准富液量设计，在高温及过充电的情况下，不易出现干涸现象，不会产生热失控现象。
适合工业现场应用
电池整体循环寿命高（50%深度放电循环950次）、耐过放电、可以长期不充足电又进行放电，非常适合工业现场应用。
应用
电力、石化行业备用电源
铁路、机场等各种应急系统备用电源
太阳能、风能、光伏发电储能
船舶、海事系统等备用电源
产品型号与尺寸
|
型号/参数
|
标称电压(V)
|
C10(Ah)
@25℃
|
30min恒功率(wpc/1.75V)
|
外形尺寸(mm)
|
重量(kg)
|
极柱(mm)
|
扭拒(N.m)
|
|||
|
长(L)
|
宽(W)
|
高(H)
|
总高(TH)
|
|||||||
|
U12V33E/A
|
12
|
33
|
60
|
198
|
166
|
170
|
170
|
14.0
|
M6
|
8-10
|
|
U12V50E/A
|
12
|
50
|
92
|
276
|
174
|
169
|
198
|
21.0
|
M8
|
12-16
|
|
U12V65E/A
|
12
|
65
|
119
|
310
|
174
|
209
|
236
|
30.0
|
M8
|
12-16
|
|
U12V85E/A
|
12
|
85
|
156
|
414
|
174
|
218
|
228
|
37.0
|
M8
|
12-16
|
|
U12V100E/A
|
12
|
100
|
183
|
513
|
163
|
218
|
228
|
44.0
|
M8
|
12-16
|
|
U12V120E/A
|
12
|
120
|
220
|
513
|
232
|
218
|
228
|
52.3
|
M8
|
12-16
|
|
U12V150E/A
|
12
|
150
|
275
|
513
|
232
|
218
|
228
|
63.8
|
M8
|
12-16
|
|
U12V200E/A
|
12
|
200
|
366
|
513
|
297
|
218
|
228
|
82.8
|
M8
|
12-16
|

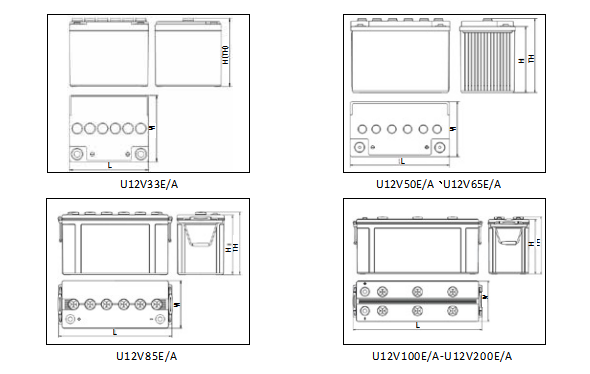

电池外形图

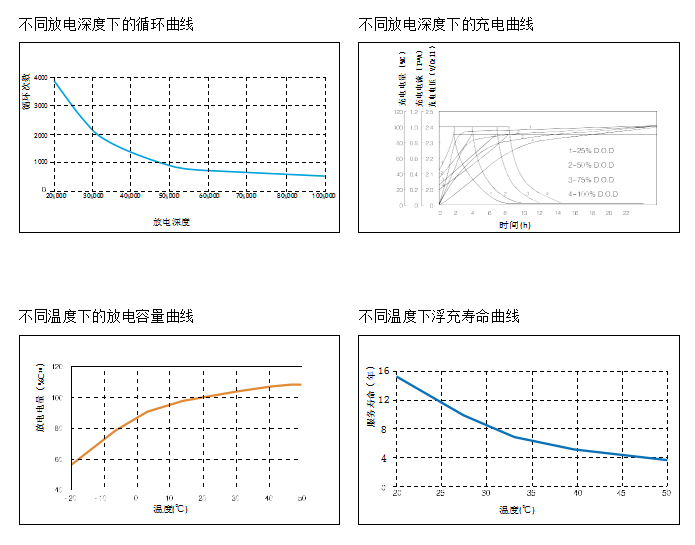

性能曲线
恒电流放电数据表
1.60V/C-Discharge in A at 25℃
|
型号/放电时间
|
5min
|
10min
|
15min
|
20min
|
30min
|
45min
|
1h
|
1.5
|
2h
|
3h
|
5h
|
10h
|
20h
|
24h
|
48h
|
100h
|
120h
|
240h
|
|
U12V33E/A
|
92
|
67
|
52
|
44
|
32
|
25
|
19.1
|
14.8
|
11.4
|
8.8
|
5.8
|
3.3
|
1.77
|
1.58
|
0.83
|
0.43
|
0.37
|
0.20
|
|
U12V50E/A
|
140
|
102
|
79
|
67
|
49
|
38
|
28.9
|
22.5
|
17.3
|
13.4
|
8.8
|
5.0
|
2.68
|
2.40
|
1.26
|
0.65
|
0.57
|
0.31
|
|
U12V65E/A
|
182
|
132
|
103
|
87
|
63
|
50
|
37.6
|
29.2
|
22.5
|
17.4
|
11.4
|
6.6
|
3.48
|
3.12
|
1.64
|
0.85
|
0.74
|
0.40
|
|
U12V85E/A
|
237
|
173
|
135
|
113
|
83
|
65
|
49.2
|
38.2
|
29.4
|
22.8
|
15.0
|
8.6
|
4.55
|
4.08
|
2.14
|
1.11
|
0.96
|
0.52
|
|
U12V100E/A
|
279
|
204
|
159
|
133
|
97
|
76
|
57.8
|
44.9
|
34.6
|
26.8
|
17.6
|
10.1
|
5.35
|
4.80
|
2.52
|
1.31
|
1.13
|
0.62
|
|
U12V120E/A
|
335
|
244
|
190
|
160
|
117
|
91
|
69.4
|
53.9
|
41.5
|
32.1
|
21.1
|
12.1
|
6.42
|
5.76
|
3.03
|
1.57
|
1.36
|
0.74
|
|
U12V150E/A
|
419
|
305
|
238
|
200
|
146
|
114
|
86.8
|
67.4
|
51.9
|
40.2
|
26.4
|
15.1
|
8.03
|
7.20
|
3.78
|
1.96
|
1.70
|
0.92
|
|
U12V200E/A
|
558
|
407
|
317
|
266
|
194
|
152
|
115.7
|
89.8
|
69.2
|
53.5
|
35.2
|
20.2
|
10.71
|
9.60
|
5.05
|
2.62
|
2.26
|
1.23
|
1.65V/C-Discharge in A at 25℃
|
型号/放电时间
|
5min
|
10min
|
15min
|
20min
|
30min
|
45min
|
1h
|
1.5
|
2h
|
3h
|
5h
|
10h
|
20h
|
24h
|
48h
|
100h
|
120h
|
240h
|
|
U12V33E/A
|
87
|
65
|
51
|
43
|
32
|
25
|
18.7
|
14.6
|
11.4
|
8.8
|
5.8
|
3.3
|
1.76
|
1.52
|
0.83
|
0.43
|
0.37
|
0.20
|
|
U12V50E/A
|
133
|
98
|
78
|
65
|
48
|
37
|
28.4
|
22.2
|
17.3
|
13.3
|
8.8
|
5.0
|
2.66
|
2.31
|
1.25
|
0.65
|
0.56
|
0.30
|
|
U12V65E/A
|
172
|
128
|
101
|
85
|
63
|
49
|
36.9
|
28.8
|
22.5
|
17.3
|
11.4
|
6.5
|
3.46
|
3.00
|
1.63
|
0.84
|
0.73
|
0.40
|
|
U12V85E/A
|
225
|
167
|
132
|
111
|
82
|
64
|
48.3
|
37.7
|
29.4
|
22.6
|
14.9
|
8.6
|
4.52
|
3.92
|
2.13
|
1.10
|
0.95
|
0.52
|
|
U12V100E/A
|
265
|
196
|
156
|
131
|
96
|
75
|
56.8
|
44.3
|
34.6
|
26.6
|
17.6
|
10.1
|
5.32
|
4.62
|
2.51
|
1.29
|
1.12
|
0.61
|
|
U12V120E/A
|
318
|
236
|
187
|
157
|
115
|
90
|
68.1
|
53.2
|
41.5
|
31.9
|
21.1
|
12.1
|
6.39
|
5.54
|
3.01
|
1.55
|
1.35
|
0.73
|
|
U12V150E/A
|
398
|
295
|
233
|
196
|
144
|
112
|
85.2
|
66.5
|
51.8
|
39.9
|
26.4
|
15.1
|
7.98
|
6.92
|
3.76
|
1.94
|
1.68
|
0.91
|
|
U12V200E/A
|
530
|
393
|
311
|
262
|
192
|
150
|
113.5
|
88.6
|
69.1
|
53.2
|
35.2
|
20.1
|
10.65
|
9.23
|
5.02
|
2.58
|
2.25
|
1.22
|
1.70V/C-Discharge in A at 25℃
|
型号/放电时间
|
5min
|
10min
|
15min
|
20min
|
30min
|
45min
|
1h
|
1.5
|
2h
|
3h
|
5h
|
10h
|
20h
|
24h
|
48h
|
100h
|
120h
|
240h
|
|
U12V33E/A
|
82
|
61
|
50
|
42
|
31
|
24
|
18.5
|
14.4
|
11.4
|
8.7
|
5.8
|
3.3
|
1.75
|
1.51
|
0.82
|
0.42
|
0.37
|
0.20
|
|
U12V50E/A
|
125
|
93
|
76
|
64
|
48
|
36
|
28.2
|
21.8
|
17.2
|
13.2
|
8.8
|
5.0
|
2.65
|
2.29
|
1.25
|
0.64
|
0.56
|
0.30
|
|
U12V65E/A
|
162
|
121
|
99
|
83
|
62
|
47
|
36.6
|
28.3
|
22.4
|
17.2
|
11.4
|
6.5
|
3.44
|
2.98
|
1.62
|
0.83
|
0.73
|
0.39
|
|
U12V85E/A
|
212
|
158
|
130
|
109
|
81
|
62
|
48.1
|
37.0
|
29.3
|
22.5
|
14.9
|
8.5
|
4.50
|
3.90
|
2.12
|
1.09
|
0.95
|
0.51
|
|
U12V100E/A
|
250
|
186
|
152
|
128
|
95
|
72
|
56.3
|
43.5
|
34.5
|
26.5
|
17.6
|
10.0
|
5.29
|
4.58
|
2.49
|
1.28
|
1.12
|
0.60
|
|
U12V120E/A
|
299
|
223
|
183
|
153
|
114
|
87
|
67.7
|
52.2
|
41.4
|
31.8
|
21.1
|
12.1
|
6.35
|
5.50
|
2.99
|
1.53
|
1.34
|
0.72
|
|
U12V150E/A
|
374
|
279
|
229
|
192
|
143
|
109
|
84.8
|
65.3
|
51.7
|
39.7
|
26.4
|
15.1
|
7.94
|
6.88
|
3.74
|
1.92
|
1.67
|
0.90
|
|
U12V200E/A
|
499
|
372
|
305
|
256
|
190
|
145
|
112.5
|
87.1
|
68.9
|
52.9
|
35.1
|
20.1
|
10.58
|
9.17
|
4.98
|
2.55
|
2.23
|
1.20
|
1.75V/C-Discharge in A at 25℃
|
型号/放电时间
|
5min
|
10min
|
15min
|
20min
|
30min
|
45min
|
1h
|
1.5
|
2h
|
3h
|
5h
|
10h
|
20h
|
24h
|
48h
|
100h
|
120h
|
240h
|
|
U12V33E/A
|
76
|
57
|
49
|
41
|
30
|
23
|
18.4
|
14.2
|
11.3
|
8.6
|
5.8
|
3.3
|
1.73
|
1.48
|
0.81
|
0.42
|
0.37
|
0.20
|
|
U12V50E/A
|
116
|
86
|
74
|
61
|
46
|
35
|
27.8
|
21.5
|
17.1
|
13.1
|
8.8
|
5.0
|
2.62
|
2.25
|
1.23
|
0.63
|
0.55
|
0.30
|
|
U12V65E/A
|
150
|
112
|
96
|
80
|
60
|
46
|
36.2
|
28.0
|
22.2
|
17.0
|
11.4
|
6.5
|
3.41
|
2.92
|
1.60
|
0.82
|
0.72
|
0.39
|
|
U12V85E/A
|
197
|
147
|
125
|
104
|
78
|
60
|
47.3
|
36.6
|
29.0
|
22.2
|
14.9
|
8.5
|
4.46
|
3.82
|
2.09
|
1.07
|
0.94
|
0.50
|
|
U12V100E/A
|
231
|
173
|
147
|
123
|
92
|
70
|
55.7
|
43.1
|
34.2
|
26.2
|
17.6
|
10.0
|
5.25
|
4.49
|
2.46
|
1.26
|
1.11
|
0.59
|
|
U12V120E/A
|
277
|
208
|
177
|
147
|
111
|
85
|
66.8
|
51.7
|
41.0
|
31.4
|
21.1
|
12.0
|
6.30
|
5.39
|
2.95
|
1.51
|
1.33
|
0.71
|
|
U12V150E/A
|
347
|
259
|
221
|
184
|
138
|
106
|
83.5
|
64.6
|
51.2
|
39.2
|
26.3
|
15.0
|
7.87
|
6.74
|
3.69
|
1.89
|
1.66
|
0.89
|
|
U12V200E/A
|
462
|
346
|
294
|
246
|
184
|
141
|
111.4
|
86.2
|
68.3
|
52.3
|
35.1
|
20.1
|
10.49
|
8.98
|
4.92
|
2.52
|
2.22
|
1.18
|
1.80V/C-Discharge in A at 25℃
|
型号/放电时间
|
5min
|
10min
|
15min
|
20min
|
30min
|
45min
|
1h
|
1.5
|
2h
|
3h
|
5h
|
10h
|
20h
|
24h
|
48h
|
100h
|
120h
|
240h
|
|
U12V33E/A
|
65
|
52
|
46
|
38
|
29
|
22
|
18.2
|
13.8
|
11.0
|
8.5
|
5.7
|
3.3
|
1.72
|
1.45
|
0.80
|
0.41
|
0.36
|
0.19
|
|
U12V50E/A
|
99
|
79
|
69
|
57
|
44
|
34
|
27.5
|
20.9
|
16.7
|
12.8
|
8.6
|
5.0
|
2.60
|
2.20
|
1.22
|
0.62
|
0.55
|
0.29
|
|
U12V65E/A
|
128
|
102
|
90
|
75
|
57
|
44
|
35.8
|
27.2
|
21.7
|
16.7
|
11.2
|
6.5
|
3.38
|
2.86
|
1.58
|
0.81
|
0.71
|
0.38
|
|
U12V85E/A
|
168
|
134
|
117
|
97
|
74
|
58
|
46.8
|
35.6
|
28.4
|
21.8
|
14.6
|
8.5
|
4.42
|
3.74
|
2.07
|
1.06
|
0.93
|
0.50
|
|
U12V100E/A
|
197
|
158
|
138
|
115
|
87
|
68
|
55.1
|
41.8
|
33.4
|
25.7
|
17.2
|
10.0
|
5.20
|
4.40
|
2.43
|
1.25
|
1.09
|
0.58
|
|
U12V120E/A
|
237
|
189
|
166
|
138
|
104
|
81
|
66.1
|
50.2
|
40.1
|
30.8
|
20.7
|
12.0
|
6.24
|
5.28
|
2.92
|
1.50
|
1.31
|
0.70
|
|
U12V150E/A
|
296
|
236
|
207
|
172
|
131
|
102
|
82.6
|
62.8
|
50.1
|
38.5
|
25.8
|
15.0
|
7.80
|
6.60
|
3.65
|
1.87
|
1.64
|
0.88
|
|
U12V200E/A
|
395
|
315
|
276
|
229
|
174
|
136
|
110.2
|
83.7
|
66.8
|
51.4
|
34.5
|
20.0
|
10.40
|
8.80
|
4.86
|
2.49
|
2.18
|
1.17
|
恒功率放电数据表
1.60V/C-Discharge in W/cell at 25℃
|
型号/放电时间
|
5min
|
10min
|
15min
|
20min
|
30min
|
45min
|
1h
|
1.5
|
2h
|
3h
|
5h
|
10h
|
20h
|
24h
|
48h
|
100h
|
120h
|
240h
|
|
U12V33E/A
|
166
|
118
|
97
|
80
|
62
|
46
|
37.2
|
29.4
|
23.2
|
16.7
|
11.1
|
6.5
|
3.57
|
3.28
|
1.94
|
0.87
|
0.78
|
0.42
|
|
U12V50E/A
|
251
|
179
|
146
|
122
|
94
|
70
|
56.4
|
44.5
|
35.2
|
25.2
|
16.8
|
9.9
|
5.41
|
4.98
|
2.94
|
1.33
|
1.18
|
0.63
|
|
U12V65E/A
|
327
|
233
|
190
|
158
|
122
|
91
|
73.3
|
57.8
|
45.7
|
32.8
|
21.8
|
12.8
|
7.03
|
6.47
|
3.82
|
1.72
|
1.54
|
0.83
|
|
U12V85E/A
|
427
|
305
|
249
|
207
|
160
|
119
|
95.9
|
75.6
|
59.8
|
42.9
|
28.5
|
16.8
|
9.20
|
8.46
|
5.00
|
2.25
|
2.01
|
1.08
|
|
U12V100E/A
|
503
|
359
|
292
|
243
|
188
|
140
|
112.8
|
89.0
|
70.3
|
50.5
|
33.6
|
19.8
|
10.82
|
9.95
|
5.88
|
2.65
|
2.37
|
1.27
|
|
U12V120E/A
|
603
|
431
|
351
|
292
|
225
|
168
|
135.3
|
106.8
|
84.4
|
60.6
|
40.3
|
23.7
|
12.98
|
11.94
|
7.06
|
3.18
|
2.84
|
1.52
|
|
U12V150E/A
|
754
|
538
|
439
|
365
|
282
|
210
|
169.2
|
133.5
|
105.5
|
75.7
|
50.3
|
29.6
|
16.23
|
14.93
|
8.82
|
3.98
|
3.55
|
1.90
|
|
U12V200E/A
|
1006
|
718
|
585
|
486
|
375
|
280
|
225.5
|
177.9
|
140.6
|
100.9
|
67.1
|
39.5
|
21.64
|
19.90
|
11.76
|
5.30
|
4.73
|
2.54
|
1.65V/C-Discharge in W/cell at 25℃
|
型号/放电时间
|
5min
|
10min
|
15min
|
20min
|
30min
|
45min
|
1h
|
1.5
|
2h
|
3h
|
5h
|
10h
|
20h
|
24h
|
48h
|
100h
|
120h
|
240h
|
|
U12V33E/A
|
159
|
116
|
95
|
79
|
61
|
46
|
37.2
|
29.1
|
23.2
|
16.5
|
11.0
|
6.5
|
3.53
|
3.18
|
1.89
|
0.86
|
0.76
|
0.41
|
|
U12V50E/A
|
240
|
176
|
144
|
120
|
93
|
70
|
56.3
|
44.1
|
35.1
|
25.0
|
16.6
|
9.8
|
5.36
|
4.82
|
2.86
|
1.31
|
1.16
|
0.62
|
|
U12V65E/A
|
313
|
229
|
188
|
156
|
121
|
91
|
73.2
|
57.3
|
45.6
|
32.5
|
21.6
|
12.7
|
6.96
|
6.27
|
3.72
|
1.70
|
1.51
|
0.81
|
|
U12V85E/A
|
409
|
299
|
245
|
204
|
158
|
119
|
95.7
|
74.9
|
59.6
|
42.5
|
28.3
|
16.7
|
9.10
|
8.20
|
4.87
|
2.23
|
1.97
|
1.05
|
|
U12V100E/A
|
481
|
352
|
288
|
240
|
186
|
140
|
112.6
|
88.1
|
70.2
|
50.0
|
33.3
|
19.6
|
10.71
|
9.64
|
5.73
|
2.62
|
2.32
|
1.24
|
|
U12V120E/A
|
577
|
422
|
346
|
289
|
223
|
167
|
135.1
|
105.7
|
84.2
|
60.0
|
39.9
|
23.5
|
12.85
|
11.57
|
6.87
|
3.14
|
2.78
|
1.49
|
|
U12V150E/A
|
721
|
527
|
433
|
361
|
279
|
209
|
168.9
|
132.2
|
105.2
|
75.0
|
49.9
|
29.4
|
16.07
|
14.47
|
8.59
|
3.93
|
3.48
|
1.86
|
|
U12V200E/A
|
962
|
703
|
577
|
481
|
372
|
279
|
225.2
|
176.2
|
140.3
|
100.0
|
66.5
|
39.2
|
21.42
|
19.29
|
11.46
|
5.24
|
4.63
|
2.48
|
1.70V/C-Discharge in W/cell at 25℃
|
型号/放电时间
|
5min
|
10min
|
15min
|
20min
|
30min
|
45min
|
1h
|
1.5
|
2h
|
3h
|
5h
|
10h
|
20h
|
24h
|
48h
|
100h
|
120h
|
240h
|
|
U12V33E/A
|
149
|
112
|
93
|
78
|
61
|
46
|
37.0
|
28.6
|
23.0
|
16.4
|
10.9
|
6.4
|
3.48
|
3.08
|
1.86
|
0.86
|
0.76
|
0.40
|
|
U12V50E/A
|
226
|
170
|
141
|
118
|
92
|
69
|
56.0
|
43.4
|
34.9
|
24.8
|
16.6
|
9.6
|
5.27
|
4.67
|
2.82
|
1.30
|
1.15
|
0.61
|
|
U12V65E/A
|
294
|
221
|
184
|
153
|
120
|
90
|
72.8
|
56.4
|
45.4
|
32.3
|
21.5
|
12.5
|
6.85
|
6.07
|
3.66
|
1.69
|
1.49
|
0.80
|
|
U12V85E/A
|
384
|
288
|
240
|
200
|
157
|
118
|
95.2
|
73.7
|
59.4
|
42.2
|
28.1
|
16.4
|
8.96
|
7.94
|
4.79
|
2.21
|
1.95
|
1.04
|
|
U12V100E/A
|
452
|
339
|
282
|
236
|
185
|
139
|
112.0
|
86.7
|
69.8
|
49.7
|
33.1
|
19.3
|
10.54
|
9.34
|
5.64
|
2.60
|
2.29
|
1.23
|
|
U12V120E/A
|
542
|
407
|
339
|
283
|
222
|
167
|
134.4
|
104.1
|
83.8
|
59.6
|
39.7
|
23.2
|
12.65
|
11.20
|
6.76
|
3.12
|
2.75
|
1.47
|
|
U12V150E/A
|
677
|
509
|
423
|
353
|
277
|
208
|
168.0
|
130.1
|
104.8
|
74.5
|
49.7
|
28.9
|
15.81
|
14.01
|
8.45
|
3.91
|
3.44
|
1.84
|
|
U12V200E/A
|
903
|
678
|
565
|
471
|
369
|
278
|
224.0
|
173.5
|
139.7
|
99.4
|
66.2
|
38.6
|
21.08
|
18.67
|
11.27
|
5.21
|
4.58
|
2.45
|
1.75V/C-Discharge in W/cell at 25℃
|
型号/放电时间
|
5min
|
10min
|
15min
|
20min
|
30min
|
45min
|
1h
|
1.5
|
2h
|
3h
|
5h
|
10h
|
20h
|
24h
|
48h
|
100h
|
120h
|
240h
|
|
U12V33E/A
|
137
|
107
|
89
|
75
|
60
|
45
|
36.5
|
28.5
|
22.9
|
16.3
|
10.8
|
6.3
|
3.42
|
3.03
|
1.74
|
0.85
|
0.75
|
0.40
|
|
U12V50E/A
|
208
|
163
|
135
|
114
|
92
|
68
|
55.2
|
43.2
|
34.8
|
24.8
|
16.4
|
9.5
|
5.18
|
4.59
|
2.63
|
1.29
|
1.13
|
0.60
|
|
U12V65E/A
|
270
|
211
|
176
|
148
|
119
|
89
|
71.8
|
56.1
|
45.2
|
32.2
|
21.3
|
12.3
|
6.73
|
5.97
|
3.42
|
1.68
|
1.47
|
0.79
|
|
U12V85E/A
|
353
|
276
|
230
|
193
|
156
|
116
|
93.9
|
73.4
|
59.1
|
42.1
|
27.9
|
16.1
|
8.80
|
7.81
|
4.48
|
2.20
|
1.93
|
1.03
|
|
U12V100E/A
|
415
|
325
|
270
|
227
|
183
|
137
|
110.5
|
86.3
|
69.5
|
49.5
|
32.8
|
19.0
|
10.36
|
9.18
|
5.27
|
2.59
|
2.27
|
1.21
|
|
U12V120E/A
|
498
|
390
|
325
|
273
|
220
|
164
|
132.6
|
103.6
|
83.4
|
59.4
|
39.4
|
22.8
|
12.43
|
11.02
|
6.32
|
3.11
|
2.72
|
1.45
|
|
U12V150E/A
|
623
|
488
|
406
|
341
|
275
|
205
|
165.7
|
129.5
|
104.3
|
74.3
|
49.2
|
28.5
|
15.54
|
13.77
|
7.90
|
3.88
|
3.40
|
1.81
|
|
U12V200E/A
|
831
|
650
|
541
|
455
|
366
|
273
|
220.9
|
172.6
|
139.1
|
99.1
|
65.6
|
38.0
|
20.71
|
18.37
|
10.53
|
5.18
|
4.54
|
2.42
|
1.80V/C-Discharge in W/cell at 25℃
|
型号/放电时间
|
5min
|
10min
|
15min
|
20min
|
30min
|
45min
|
1h
|
1.5
|
2h
|
3h
|
5h
|
10h
|
20h
|
24h
|
48h
|
100h
|
120h
|
240h
|
|
U12V33E/A
|
121
|
98
|
84
|
71
|
58
|
44
|
35.6
|
27.4
|
22.0
|
16.1
|
10.3
|
6.1
|
3.31
|
2.96
|
1.64
|
0.84
|
0.74
|
0.39
|
|
U12V50E/A
|
184
|
149
|
127
|
107
|
88
|
66
|
53.9
|
41.6
|
33.4
|
24.4
|
15.5
|
9.3
|
5.02
|
4.49
|
2.48
|
1.28
|
1.12
|
0.60
|
|
U12V65E/A
|
239
|
194
|
165
|
140
|
115
|
86
|
70.1
|
54.0
|
43.4
|
31.7
|
20.2
|
12.0
|
6.53
|
5.83
|
3.22
|
1.66
|
1.46
|
0.78
|
|
U12V85E/A
|
312
|
253
|
216
|
182
|
150
|
113
|
91.7
|
70.7
|
57.8
|
41.5
|
26.4
|
15.7
|
8.54
|
7.63
|
4.21
|
2.17
|
1.91
|
1.01
|
|
U12V100E/A
|
367
|
298
|
254
|
215
|
177
|
132
|
107.8
|
83.1
|
67.8
|
48.8
|
31.1
|
18.5
|
10.04
|
8.98
|
4.96
|
2.56
|
2.24
|
1.19
|
|
U12V120E/A
|
441
|
357
|
304
|
258
|
212
|
159
|
129.4
|
99.8
|
81.1
|
58.5
|
37.3
|
22.2
|
12.05
|
10.77
|
5.95
|
3.07
|
2.69
|
1.43
|
|
U12V150E/A
|
551
|
447
|
380
|
322
|
265
|
199
|
161.8
|
124.7
|
102.2
|
73.2
|
46.6
|
27.8
|
15.06
|
13.46
|
7.44
|
3.84
|
3.37
|
1.79
|
|
U12V200E/A
|
734
|
595
|
507
|
429
|
354
|
265
|
215.7
|
166.3
|
135.5
|
97.6
|
62.1
|
37.0
|
20.09
|
17.95
|
9.92
|
5.12
|
4.49
|
2.39
|
